Blister Packaging Machines

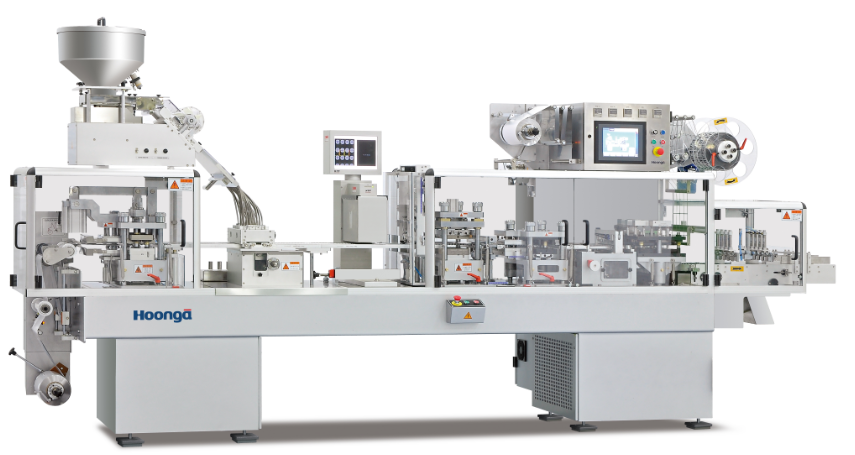

HM V3

  • Quick changeover
  • Mechanical CAM driven
  • Platen sealing technology
  • Up to 50 cycles, Maximum 150 blisters per minute
  • Maximum Forming Depth 30mm (optional)
  • Thermoforming and Cold Forming Blisters
  • MMI control via PLC & touch panel
  • Zigzag designed punch for less waste
  • Suitable for frequent change-over of tool
  • CE Regulation approved
  • Individual rejection system (optional)
  • Simple design

HM V6 TR

Tropical blister machine

  • Mechanical CAM driven
  • Platen sealing technology
  • Up to 50 cycles, Maximum 200 blisters per minute
  • Maximum Forming depth 30mm (optional)
  • Thermoforming and cold forming blisters
  • MMI control via PLC & touch panel
  • Zigzag designed punch for less waste
  • Quick and easy mold changeover by sliding – in and fastening
  • Suitable for medium production
  • CE Regulation approved
  • Individual rejection system (optional)

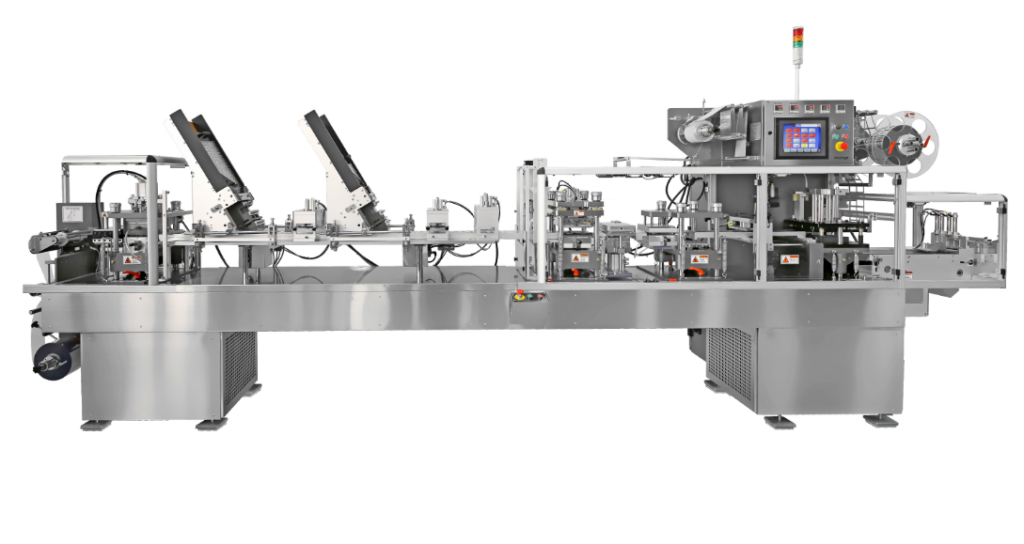

HM AV+ (WITH VIAL AUTO FEEDING)

Designed for Ampoules, Vials,PFS, cartridges

  • Up to 30 rpm.
  • MMI control via PLC & touch panel.
  • Thermoforming by clean air blowing with plug assisting.
  • Wide and deep draw forming range for various kinds production.
  • Blister cavity design in vase shape to lock an ampoule/vial.
  • Double pre-heating system (AV+).
  • Servo motor driven web indexing (AV+).
  • Online camera & printing system available
  • Automatic product feeding system available (AV+).
  • Automatic ampoule/vial feeding system available (AV+).
  • CE Regulation approved

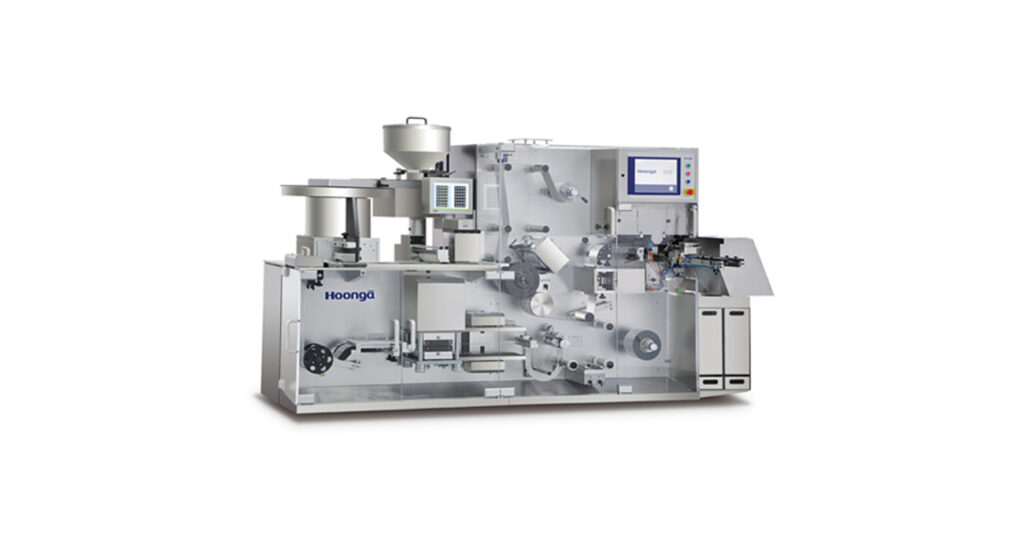

H 200 R

Maximum 200 blisters per minute

  • MMI control via industrial PC control system
  • Compact floor space
  • Non contact sandwich type preheating
  • Drum sealing station + self adjustment indexing by servo motor
  • Servo-controlled blister machine
  • Easy and fast format mold changeover
  • Flexible discharge direction
  • PP film applicable
  • cGMP compliant design
  • 21 CFR part 11 ensure (Option)

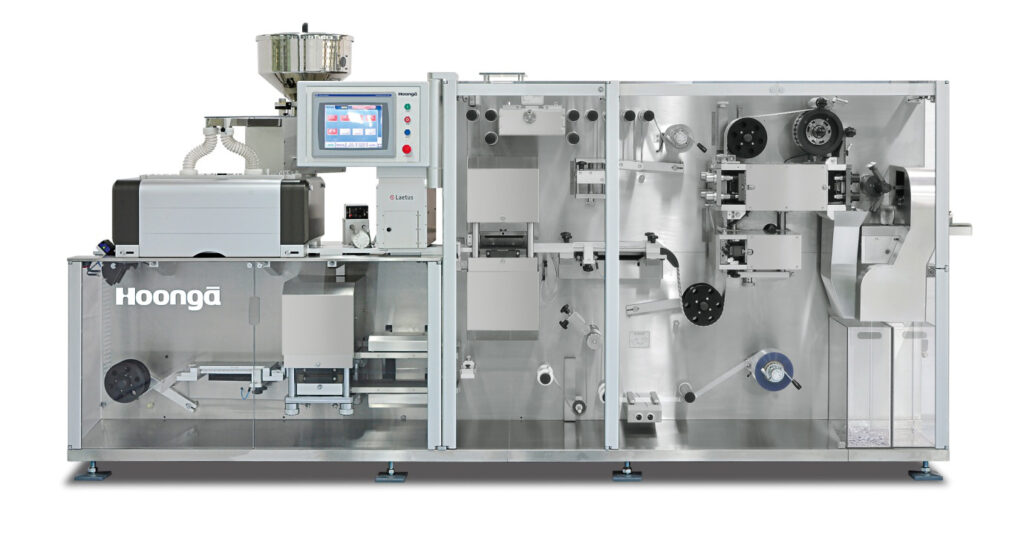

H 300 P

Maximum 300 blisters per minute.

  • Industrial standard PLC control system.
  • PackML programming.
  • GMP compliant design.
  • Intermittent platen sealing station.
  • Compact design & Fast tool change over.
  • Convenient integration system.
  • 21 CFR part 11 ensure (Option)

HM 400 R

Maximum 400 blisters per minute.

  • MMI control via industrial PC control system.
  • Compact floor space.
  • Non contact sandwich type preheating.
  • Drum sealing station + self adjustment indexing by servo motor.
  • Servo-controlled blister machine.
  • Easy and fast format mold changeover.
  • Flexible discharge direction.
  • PP film applicable.
  • CGMP compliant design
  • 21 CFR part 11 ensure (Option)

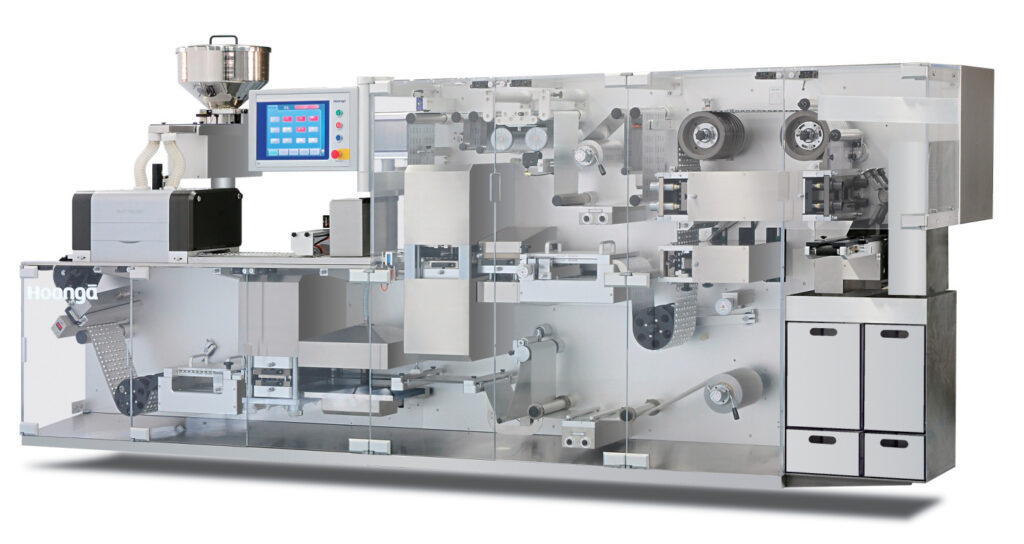

HM 400 P

Maximum 400 blisters per minute

  • MMI control via industrial PC control system
  • Compact floor space
  • Non contact sandwich type preheating
  • Platen-platen sealing station + self adjustment indexing by servo motor
  • Servo-controlled blister machine
  • Easy and fast format mold changeover
  • Flexible discharge direction
  • cGMP compliant design
  • 21 CFR part 11 compliance
  • Connectivity through modem

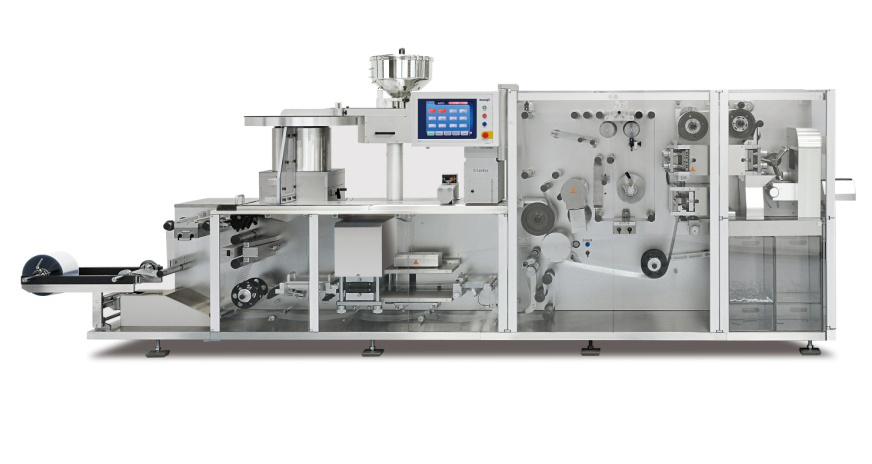

HM 600 R

Maximum 600 blisters per minute.

  • MMI control via industrial PC control system.
  • Compact floor space.
  • Non contact sandwich type preheating.
  • Drum sealing station &self adjustment indexing by servo motor.
  • Servo-controlled blister machine.
  • Easy and fast format mold changeover.
  • 100% accuracy of faulty blister packs rejection.
  • CGMP compliant design.
  • 21 CFR part 11 ensure (Option).

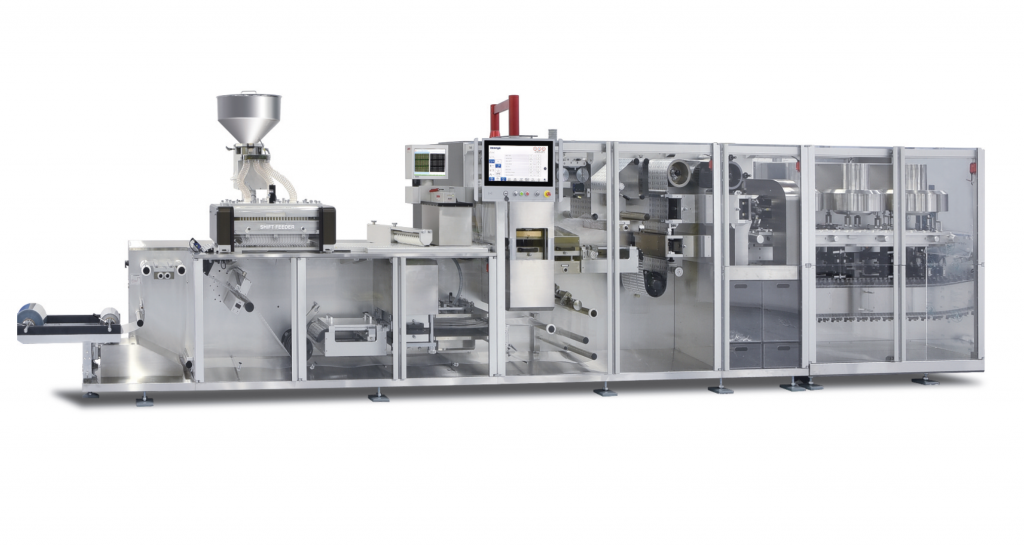

HM 600 P

  • Intermittent motion platen sealing operation
  • Servo driven stations for accurate operating and tool set-up
  • Convenient integrate and transfer system with less format parts
  • Precise individual ejection by discharge wheel
  • One (1) to three (3) lanes mode of operation applicable
  • Newly innovated HMI operator panel
  • Movable touch panel for operator convenience
  • Easy maintenance and fast format change over
